SE92 Seismic Reinforcing Mesh Grade 500E (Large)

$186.65
Excl. GST

Notify me when back in stock

Reinforcing Mesh Calculator

Our clever mesh calculator will calculate how many sheets of mesh you require and add it to your cart!

For this type of mesh, each sheet covers approximately 12.36 m² (including overlapping).




Description

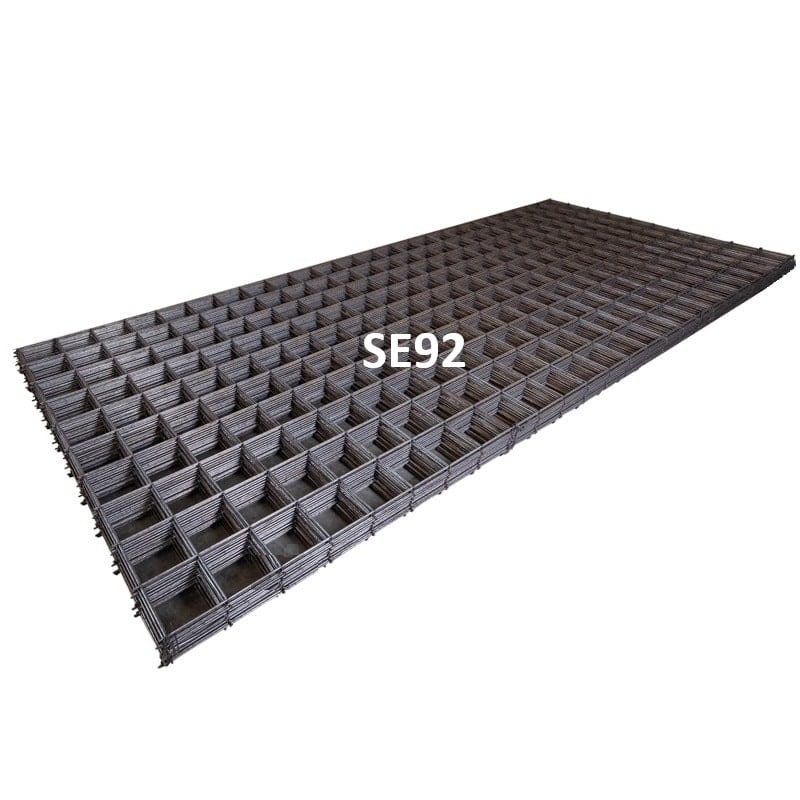

SE92 Seismic Reinforcing Mesh Grade 500E (Large)

SE92 mesh is suited for engineered applications such as suspended floors or engineered slabs where a specific minimum strength needs to be achieved. SE92 seismic mesh is usually specified by engineers during the design stage of projects. SE92 reinforcing mesh has been engineered to meet the shaky conditions of the New Zealand landscape. All SE92 mesh sheets have full traceability and can be used with confidence.

Technical Specifications

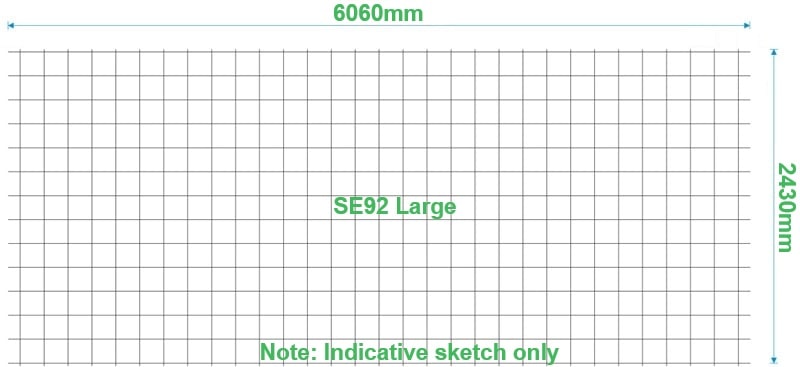

  • SE92 mesh dimensions: 6.06m x 2.43m
  • Gross sheet area: 14.73 m2
  • Net cover (with 250mm* lapping): Approx. 12.36m2
  • Mass per sheet: Approx. 77kg
  • Wire Centres: 200mm
  • Wire: 9.0mm smooth / plain
  • Yield Stress: > 500MPa

* Please consult your engineer if a specific overlap splice is required

What is SE92 Mesh?

  • “S” stands for square (shape of the grids)
  • “E” stands for earthquake (seismic grade)
  • “9” stands for wire diameter in mm
  • “2” stands for centres between wires (200mm)

Applications of SE92 Grade 500E Seismic Mesh

Seismic grade 500E reinforcing mesh is designed for high-strength performance in earthquake-prone areas, meeting strict engineering requirements for ductility and load resistance. It helps concrete structures flex under seismic forces without catastrophic failure. Installed per engineering plans, the SE92 mesh is supported on chairs or spacers to position it correctly within the slab or wall’s depth. Concrete is poured to fully encase the steel, ensuring maximum bond and strength, with overlaps and ties secured to maintain structural integrity during seismic events.
