BTPC405Y Beton Trowel 460kg Reversible Plate Compactor
$17,885.00
- Description
- Why Buy From Us
- Shipping
Description

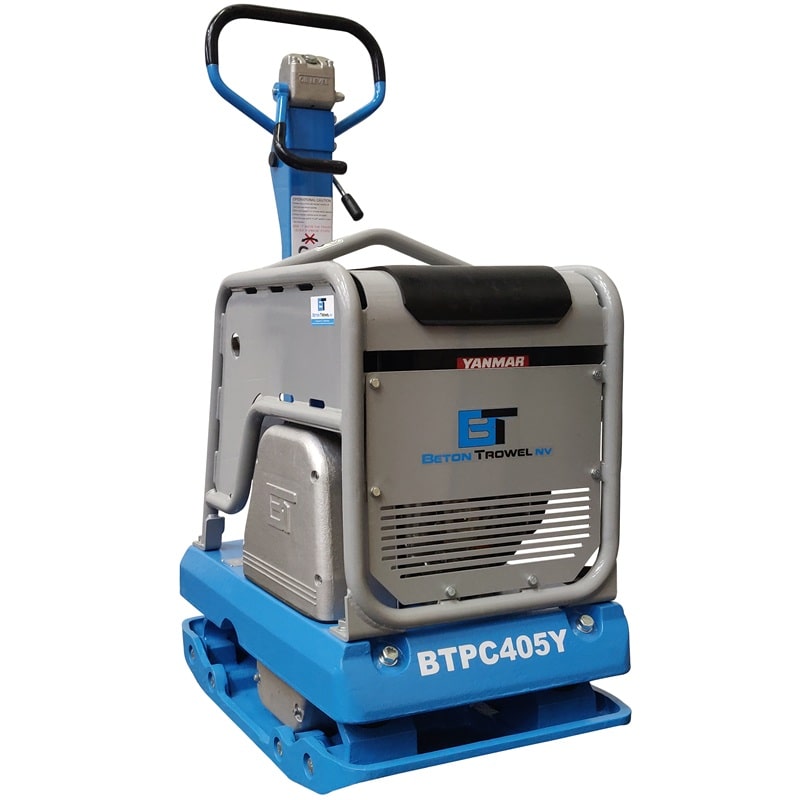

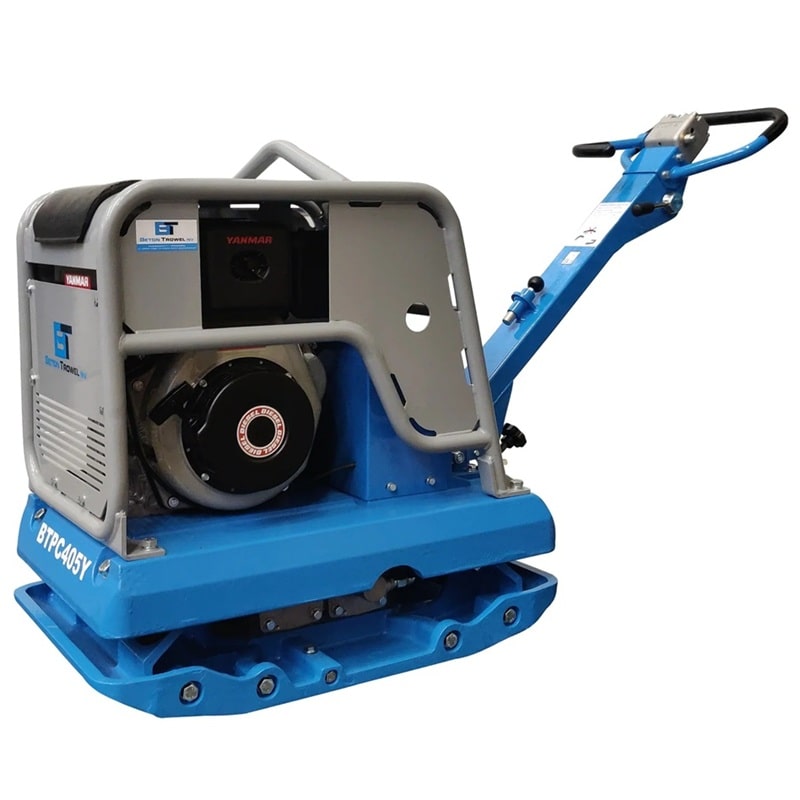

The Beton Trowel BTPC405Y Reversible Plate Compactor is an excellent choice for compacting soil, gravel, and asphalt with superior power and reliability. Fitted with the robust and renowned Yanmar L100AE Diesel engine, this 460kg reversible compactor delivers an incredible 50kN of centrifugal force for extra heavy duty applications. The Beton Trowel name is synonymous with quality and suited for professionals who demand strength, efficiency, and durability.
Features & Benefits of the Beton Trowel BTPC405Y Reversible Plate Compactor:
- Yanmar L100AE Diesel 10HP engine: Trusted, widely used, economical, reliable engine.
- 460KG operating weight: suitable for use on heavy duty surfaces where extra deep compaction is required.
- 50kN centrifugal force: Packs incredible compaction power into every pass.
- 4400 VPM: High-frequency vibration for maximum compaction efficiency.
- Travel speed of 23m/min: Gets the job done faster.
- 900 x 500 mm ductile iron plate: Built to last with superior strength.
-
Solid steel frame: Protects the engine and doubles as a lifting point.
- Cast aluminium enclosed belt guard: Lightweight and corrosion-resistant.
- Built tough: Reliable performance under tough site conditions.
- Hydraulic reversing mechanism with flexible maneuverability allows forward and backward and on the spot compaction.
- 1 Year manufacturer’s warranty.
Perfect for contractors, landscapers, and construction pros - compact like a pro with Beton Trowel.
Specifications of the Beton Trowel BTPC405Y 460kg Reversible Plate Compactor:
|
Engine type |
Yanmar L100AE Diesel (10HP) |
|
Weight |
460kg |
|
Plate size |
900mm L x 500mm W |
|
Impact cycle |
73.33Hz (4,400 vibrations / min) |
|
Traveling speed |
23 m/min |
|
Centrifugal force |
50kN (5,099 kgf) |
Plate compactors are best for gravel, sand or silt and larger areas and compact through vibration (as opposed to impact, which is used by Trench Rammers). Plate compacters do not compact as deep as Trench Rammers, but can be used on larger areas and can also be used on all soils.
Things to consider when selecting a plate compactor:
- Centrifugal force
- Vibration per minute (VPM)
- The durability of the plate
- Additional features required (e.g. water tank or transport wheels)
Generally cast ductile iron plates are better suited for compaction, while a higher VPM is better suited for asphalt and granular materials. The amplitude (stroke length) and weight are usually a better indication of performance than the centrifugal force.
