Reinforcing Mesh Calculator
Our clever mesh calculator will calculate how many sheets of mesh you require and add it to your cart!
For this type of mesh, each sheet covers approximately 12.76 m² (including overlapping).
- Description
- Why Buy From Us
- Shipping
Description

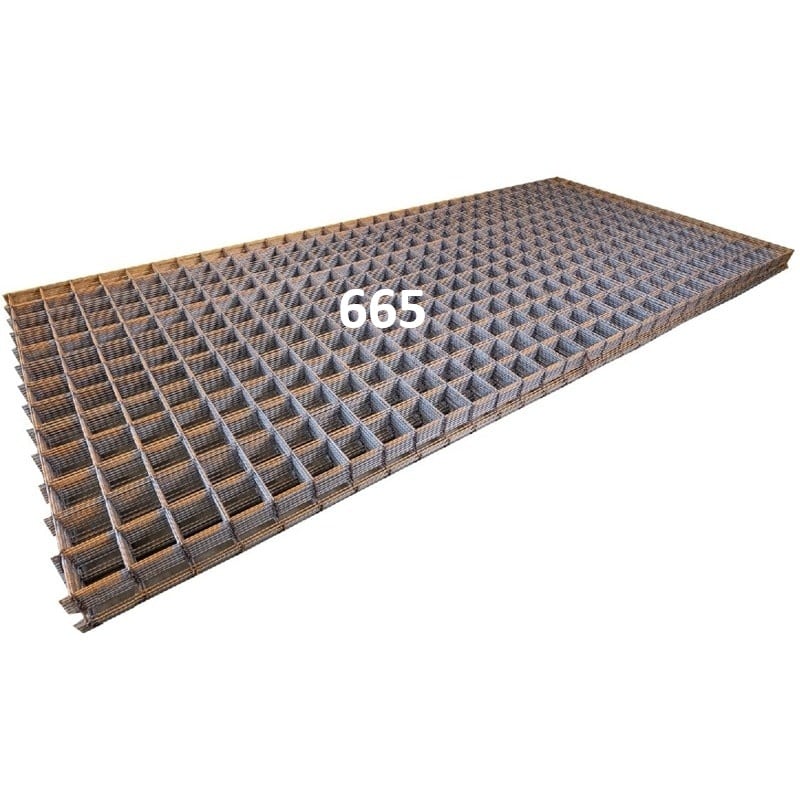

665 Construction Yard Mesh (6.06m x 2.42m) - Large Size
Our 665 hard drawn yard mesh is designed to deliver exceptional reinforcement strength for residential driveways, footpaths, patios and light-use yard slabs. 665 Yard mesh offers sufficient strength for everyday use where an engineer's approval isn't required.
665 Reinforcing mesh is manufactured from high-quality hard-drawn steel in accordance with NZS4671:2019 and provides excellent tensile strength, helping ensure your concrete remains strong and resistant to cracking for years to come.
Technical Specifications

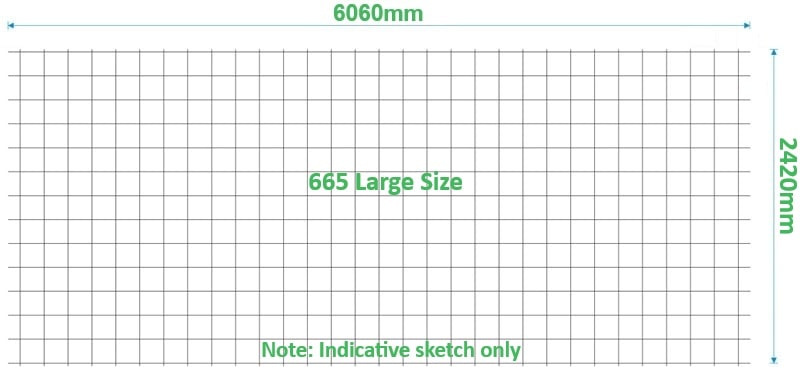

- 665 Large size mesh dimensions: 6.06m x 2.42m
- Gross sheet area: 14.67 m2
- Net cover (with 200mm* lapping): Approx. 12.76 m2
- (please consult your engineer if a specific overlap splice is required)
- Wire centres: 150mm
- Wire: 5.3mm dia
- Mass per sheet: Approx. 35kg
- Yield strength: >= 500MPa
* Please consult your engineer if a specific overlap splice is required
Applications of Hard Drawn Yard Mesh
Reinforcing mesh in yard slabs and driveways provides extra strength, reducing cracking from soil movement, temperature changes, and vehicle loads. While yard mesh is not always required by engineering standards, it greatly improves durability and lifespan. This hard drawn mesh is usually placed on top of small plastic bar chairs or concrete spacers so it sits in the middle of the slab’s thickness. During pouring, concrete fully surrounds the mesh, locking it in place to distribute loads evenly and help prevent structural failure over time.
