Reinforcing Mesh

Full Mesh Price List

Please have a quick read of the following paragaph:

Our reinforcing products are fabricated by different manufacturers who may occasionally have dimensions and specifications that differ slightly from each other - we have added drawings + dimensions to every single mesh product to reflect the data from the different manufacturers. This is why we advertise for example two different types of 668 or 663 mesh. The different manufacturers also offer different prices and different costs for delivery. These differences have been reflected in the below price list.

For any reinforcing related queries or quote requests, please contact us via Live Chat or e-mail reinforcing@buildquip.co.nz

Click on the mesh type below to be taken to the corresonding product page.

Please note the following (see correponding asterisks in table below):

* Net cover area depends on engineer's lapping requirements (for example 200mm or 250mm lapping).

** Delivered on flat deck truck between Bombays & Silverdale.

*** Please get in touch via our live chat for any questions / issues regarding shipping.



Ductile Grade 500E Seismic Mesh

$ / Sheet

Delivery

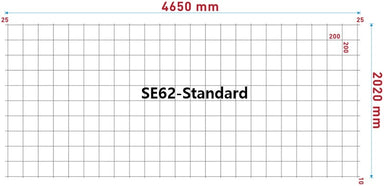

SE62 Standard Mesh (4.65m x 2.02m, *Net Cover = Approx. 7.92m2) $66.85 ** Free shipping in Auckland for combined orders over $1k
*** Rates for other regions shown at checkout

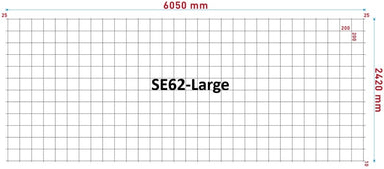

SE62 Large Mesh (6.05m x 2.42m, *Net Cover = Approx. 12.36m2 to 12.76m2) $100.25 ** Free shipping in Auckland for combined orders over $1k
*** Rates for other regions shown at checkout

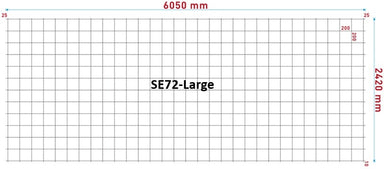

SE72 Large Mesh (6.05m x 2.42m, *Net Cover = Approx. 12.36m2 to 12.76m2) $133.75 ** Free shipping in Auckland for combined orders over $1k
*** Rates for other regions shown at checkout

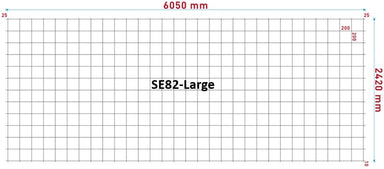

SE82 Large Mesh (6.05m x 2.42m, *Net Cover = Approx. 12.36m2 to 12.76m2) $178.35 ** Free shipping in Auckland for combined orders over $1k
*** Rates for other regions shown at checkout
SE92 Large Mesh (6.05m x 2.42m, *Net Cover = Approx. 12.36m2 to 12.76m2) $217.50 ** Free shipping in Auckland for combined orders over $1k
*** Rates for other regions shown at checkout

General Construction / Yard Mesh

$ / Sheet

Delivery
668 Standard (4.56m x 1.97m, *Net Cover = Approx. 7.52 m2) $39.75 *** Shipping rates shown at checkout

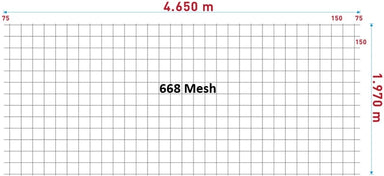

668 Standard (4.65m x 1.97m, *Net Cover = Approx. 7.52 m2) $35.35 ** Free shipping in Auckland for combined orders over $1k
*** Rates for other regions shown at checkout
665 Handy Sheet (1.97m x 0.98m, *Net Cover = Approx. 1.35 m2) $17.85 *** Shipping rates shown at checkout
665 Standard (4.56m x 1.97m, *Net Cover = Approx. 7.52 m2) $64.35 *** Shipping rates shown at checkout
665 Standard (4.65m x 1.97m, *Net Cover = Approx. 7.52 m2) $56.45 ** Free shipping in Auckland for combined orders over $1k
*** Rates for other regions shown at checkout

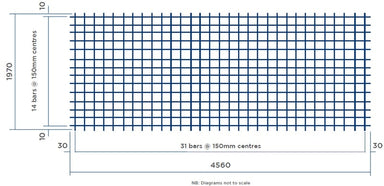

663 Standard (4.56m x 1.97m, *Net Cover = Approx. 7.52 m2) $90.55 *** Shipping rates shown at checkout
663 Large (5.57m x 2.12m, *Net Cover = Approx. 10.17m2) $84.25 ** Free shipping in Auckland for combined orders over $1k
*** Rates for other regions shown at checkout

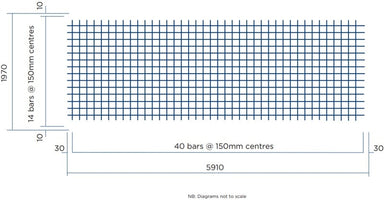

661 Large (5.91m x 1.97m, *Net Cover = Approx. 9.89 m2) $164.55 *** Shipping rates shown at checkout
661 Large (5.57m x 2.12m, *Net Cover = Approx. 10.17 m2) $153.00 ** Free shipping in Auckland for combined orders over $1k
*** Rates for other regions shown at checkout
D84 Double Edge Mesh (4.98m x 2.2m, *Net Cover = Approx. 10.08 m2) $46.45 *** Shipping rates shown at checkout

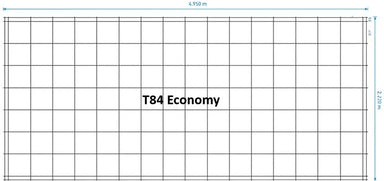

T84 Twin Edge Economy Mesh (4.95m x 2.22m, *Net Cover = Approx. 10.08 m2) $44.55 ** Free shipping in Auckland for combined orders over $1k
*** Rates for other regions shown at checkout
D147 Double Edge Mesh (4.98m x 2.22m, *Net Cover = Approx. 10.08 m2) $82.25 *** Shipping rates shown at checkout
T147 Twin Edge Economy Mesh (4.95m x 2.22m, *Net Cover = Approx. 10.08 m2) $94.75 ** Free shipping in Auckland for combined orders over $1k
*** Rates for other regions shown at checkout



Understanding the Different Types of Steel Reinforcing Mesh for New Zealand Construction

In New Zealand's dynamic construction landscape, steel reinforcing mesh plays a pivotal role in ensuring structural integrity. Two primary types of reinforcing mesh dominate the industry: seismic-certified Grade 500E mesh and standard-grade hard-drawn mesh.

Seismic-Certified Grade 500E Reinforcing Mesh

Designed to withstand New Zealand's seismic activity, Grade 500E steel reinforcing mesh is manufactured in accordance with NZS 4671:2001 (Ductility Class E) and NZS 3604:2011 standards. This mesh is essential for engineered applications such as suspended floors and ground slabs. Its high tensile strength (≥500MPa) and ductility (Class E) ensure resilience under stress. Each sheet offers full traceability, providing confidence in compliance and performance.

One example of seismic certified grade 500E steel reinforcing mesh is SE82 Mesh:

  • “S” stands for square (shape of the grids)
  • “E” stands for earthquake (seismic grade)
  • “8” stands for wire diameter in mm
  • “2” stands for centres between wires (200mm)

Standard Grade Hard-Drawn Construction Mesh

For non-structural applications like driveways and footpaths, standard-grade hard-drawn steel reinforcing mesh is the preferred choice. Manufactured in accordance with NZS 4671:2001, this hard-drawn mesh offers sufficient strength for everyday use. The specifications of this steel reinforcing mesh, such as wire diameters and spacing, can accommodate various project needs.

Choosing the Right Mesh for Your Project

Selecting the appropriate steel reinforcing mesh depends on the structural requirements of your project. For areas prone to seismic activity, where structural integrity is paramount, or engineer sign-off is required, Grade 500E reinforcing mesh is non-negotiable. For less critical applications, standard-grade steel reinforcing mesh provides an economical and effective solution.

Ensure your construction projects meet New Zealand's rigorous standards by choosing the right steel reinforcing mesh. Whether it's the robustness of seismic-certified mesh or the practicality of standard-grade mesh, making an informed choice is crucial for safety and durability.
